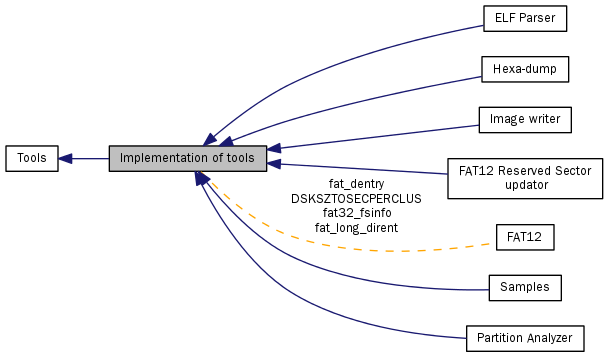

Implementation of tools에 대한 협력 다이어그램:

모듈
	ELF Parser
	ELF 포맷을 파싱해서 링크 하고 메모리에 적재해서 실행시킨다. NCKernel 은 ELF 포맷이기 때문에, 이 로더가 커널을 로딩한다.

	Image writer

	Samples
	Various sample codes.

	Partition Analyzer

	FAT12 Reserved Sector updator

	Hexa-dump

데이타 구조
struct	fat_dentry

struct	boot_parameter_block

struct	DSKSZTOSECPERCLUS

struct	fat32_fsinfo

struct	fat_long_dirent

매크로
#define	SIZEOF_DENTRY 32

#define	ROOT_DIR_SECTORS(bpb) ((((bpb)->nr_root_entry * SIZEOF_DENTRY) + ((bpb)->sector_size - 1)) / (bpb)->sector_size)

#define	FAT_SIZE(bpb) ((bpb)->size_of_fat16 ? (bpb)->size_of_fat16 : (bpb)->type.fat32.size_of_fat32)

#define	FIRST_DATA_SECTOR(bpb) ((bpb)->reserved_sector + ((bpb)->nr_fat * FAT_SIZE(bpb)) + ROOT_DIR_SECTORS(bpb))

#define	FIRST_SECTOR_OF_CLUSTER(bpb, N) (((N)-2) * ((bpb)->sector_per_cluster) + FIRST_DATA_SECTOR(bpb))

#define	TOTAL_SECTOR(bpb) ((bpb)->total_sector16 ? (bpb)->total_sector16 : (bpb)->total_sector32)

#define	NR_DATA_SECTOR(bpb) (TOTAL_SECTOR(bpb) - ((bpb)->reserved_sector + (bpb)->nr_fat * FAT_SIZE(bpb)) + ROOT_DIR_SECTORS(bpb))

#define	COUNT_OF_CLUSTER(bpb) (NR_DATA_SECTOR(bpb) / (bpb)->sector_per_cluster)

#define	IS_FAT12(bpb) (COUNT_OF_CLUSTER(bpb) < 4085)

#define	IS_FAT16(bpb) (!IS_FAT12(bpb) && (COUNT_OF_CLUSTER(bpb) < 65525))

#define	IS_FAT32(bpb) (COUNT_OF_CLUSTER(bpb) >= 65525)

#define	COUNT_OF_VALID_MAX_CLUSTER(bpb) (COUNT_OF_CLUSTER(bpb) + 1)

#define	FAT_OFFSET(bpb, N)

#define	THIS_FAT_SECTOR_NUMBER(bpb, N) (FAT_OFFSET(bpb, (N)) / (bpb)->sector_size)

#define	THIS_FAT_SECTORS(bpb, N) ((bpb)->reserved_sector + (N) * FAT_SIZE(bpb))

#define	THIS_FAT_OFFSET(bpb, N) (THIS_FAT_SECTORS(bpb, (N)) * (bpb)->sector_size)

#define	THIS_FAT_ENTRY_OFFSET(bpb, N) (FAT_OFFSET(bpb, (N)) % (bpb)->sector_size)

#define	TO_WORD(buffer) ((unsigned short*)(&buffer))

#define	TO_DWORD(buffer) ((unsigned int*)(&buffer))

#define	FAT_EOF(bpb) (IS_FAT12(bpb) ? 0x0FF8 : IS_FAT16(bpb) ? 0xFFF8 : IS_FAT32(bpb) ? 0x0FFFFFF8 : 0)

#define	GET_CLUSTER_ENTRY_VALUE(bpb, buffer, N)

#define	SET_CLUSTER_ENTRY_VALUE(bpb, buffer, N, val)

#define	IS_EOF(bpb, val) (IS_FAT12(bpb) ? (val) >= 0x0FF8 : IS_FAT16(bpb) ? (val) >= 0xFFF8 : IS_FAT32(bpb) ? (val) >= 0x0FFFFFF8 : 0)

#define	BAD_CLUSTER12 0x0FF7

#define	BAD_CLUSTER16 0xFFF7

#define	BAD_CLUSTER32 0x0FFFFFF7

#define	UPDATE_FAT_SIZE(bpb, dsksz)

#define	FIRST_ROOTDIR_SECTOR(bpb) ((bpb)->reserved_sector + (bpb)->nr_fat * FAT_SIZE(bpb))

#define	GET_FIRST_BLOCK(dentry) ((dentry)->first_cluster_hi << 16 \| (dentry)->first_cluster_lo)

#define	IS_FREE_DENTRY(dirent) ((unsigned char)((dirent)->name[0] == (unsigned char)0xE5) \|\| ((dirent)->name[0] == 0x00))

#define	IS_KANJI_NAME(dirent) ((dirent)->name[0] == 0x05)

#define	IS_VALID_CHAR_FOR_NAME(ch) (!(((ch) != 0x05 && (ch) < 0x20) && (ch) != 0x22 && ((ch) >= 0x2A && (ch) <= 0x2F) && ((ch) >= 0x3A && (ch) <= 0x3F) && (ch) != 0x5B && (ch) != 0x5C && (ch) != 0x5D && (ch) != 0x7C))

#define	DAY_OF_MONTH(ent) ((ent)->write_date & 0x000Fu)

#define	MONTH_OF_YEAR(ent) (((ent)->write_date >> 4) & 0x000Fu)

#define	COUNT_OF_YEAR(ent) (1980 + (((ent)->write_date >> 8) & 0x00FFu))

#define	SECOND_COUNT(ent) ((ent)->write_time & 0x000Fu)

#define	MINUTES(ent) (((ent)->write_time >> 4) & 0x003F)

#define	HOURS(ent) (((ent)->write_time >> 10) & 0x001F)

#define	LAST_LONG_ENTRY 0x40

#define	PATH_MAX 256

#define	IS_LAST_SLOT(ent) ((ent->ord & LAST_LONG_ENTRY) == 0)

타입정의
typedef struct fat_dentry	fat_dentry_t

typedef struct boot_parameter_block	boot_parameter_block_t

typedef struct fat_long_dirent	fat_slot_t

열거형 타입
enum	dir_attributes { ATTR_READ_ONLY = 0x01, ATTR_HIDDEN = 0x02, ATTR_SYSTEM = 0x04, ATTR_VOLUME_ID = 0x08, ATTR_DIRECTORY = 0x10, ATTR_ARCHIVE = 0x20, ATTR_NONE = 0x00, ATTR_EXT = ATTR_READ_ONLY \| ATTR_HIDDEN \| ATTR_SYSTEM \| ATTR_VOLUME_ID, ATTR_UNUSED = ATTR_ARCHIVE \| ATTR_VOLUME_ID \| ATTR_SYSTEM \| ATTR_HIDDEN, ATTR_LONG_NAME = ATTR_READ_ONLY \| ATTR_HIDDEN \| ATTR_SYSTEM \| ATTR_VOLUME_ID, ATTR_LONG_NAME_MASK = ATTR_READ_ONLY \| ATTR_HIDDEN \| ATTR_SYSTEM \| ATTR_VOLUME_ID \| ATTR_DIRECTORY \| ATTR_ARCHIVE, ATTR_NO_FILE = ATTR_SYSTEM \| ATTR_VOLUME_ID \| ATTR_DIRECTORY, ACTIVE_FLAG = 0x80, EXTENDED = 0x05, DELETED_FLAG = 0xE5 }

함수
struct fat_dentry	__attribute__ ((packed))

int	main (int argc, char *argv[])

변수
struct DSKSZTOSECPERCLUS	__attribute__

상세한 설명

매크로 문서화

#define BAD_CLUSTER12 0x0FF7

#define BAD_CLUSTER16 0xFFF7

#define BAD_CLUSTER32 0x0FFFFFF7

#define COUNT_OF_CLUSTER ( bpb) (NR_DATA_SECTOR(bpb) / (bpb)->sector_per_cluster)

#define COUNT_OF_VALID_MAX_CLUSTER ( bpb) (COUNT_OF_CLUSTER(bpb) + 1)

#define COUNT_OF_YEAR ( ent) (1980 + (((ent)->write_date >> 8) & 0x00FFu))

#define DAY_OF_MONTH ( ent) ((ent)->write_date & 0x000Fu)

#define FAT_EOF ( bpb) (IS_FAT12(bpb) ? 0x0FF8 : IS_FAT16(bpb) ? 0xFFF8 : IS_FAT32(bpb) ? 0x0FFFFFF8 : 0)

#define FAT_OFFSET	(	bpb,
		N
	)

값:

(IS_FAT16(bpb) ? (N) * 2                                \
                : (IS_FAT32(bpb) ? (N) * 4                      \
                        : (IS_FAT12(bpb) ? (N)+(N)/2 : -1)))

#define FAT_SIZE ( bpb) ((bpb)->size_of_fat16 ? (bpb)->size_of_fat16 : (bpb)->type.fat32.size_of_fat32)

#define FIRST_DATA_SECTOR ( bpb) ((bpb)->reserved_sector + ((bpb)->nr_fat * FAT_SIZE(bpb)) + ROOT_DIR_SECTORS(bpb))

#define FIRST_ROOTDIR_SECTOR ( bpb) ((bpb)->reserved_sector + (bpb)->nr_fat * FAT_SIZE(bpb))

#define FIRST_SECTOR_OF_CLUSTER	(	bpb,
		N
	)	(((N)-2) * ((bpb)->sector_per_cluster) + FIRST_DATA_SECTOR(bpb))

#define GET_CLUSTER_ENTRY_VALUE	(	bpb,
		buffer,
		N
	)

값:

(IS_FAT16(bpb) ? *TO_WORD((buffer) + THIS_FAT_ENTRY_OFFSET(bpb, (N)))   \
                : (IS_FAT32(bpb) ? ((*TO_DWORD((buffer) + THIS_FAT_ENTRY_OFFSET(bpb, (N)))) & 0x0FFFFFFF) \
                        : (IS_FAT12(bpb) ? \
                                (((N) & 0x0001) ? \
                                        (*TO_WORD(((char*)(buffer) + THIS_FAT_SECTOR_NUMBER(bpb, N) * (bpb)->sector_size)[THIS_FAT_ENTRY_OFFSET(bpb, N)])) >> 4 \
                                 :      (*TO_WORD(((char*)(buffer) + THIS_FAT_SECTOR_NUMBER(bpb, N) * (bpb)->sector_size)[THIS_FAT_ENTRY_OFFSET(bpb, N)])) & 0x0FFF) \
                        : FAT_EOF(bpb))))

#define GET_FIRST_BLOCK ( dentry) ((dentry)->first_cluster_hi << 16 | (dentry)->first_cluster_lo)

#define HOURS ( ent) (((ent)->write_time >> 10) & 0x001F)

#define IS_EOF	(	bpb,
		val
	)	(IS_FAT12(bpb) ? (val) >= 0x0FF8 : IS_FAT16(bpb) ? (val) >= 0xFFF8 : IS_FAT32(bpb) ? (val) >= 0x0FFFFFF8 : 0)

#define IS_FAT12 ( bpb) (COUNT_OF_CLUSTER(bpb) < 4085)

#define IS_FAT16 ( bpb) (!IS_FAT12(bpb) && (COUNT_OF_CLUSTER(bpb) < 65525))

#define IS_FAT32 ( bpb) (COUNT_OF_CLUSTER(bpb) >= 65525)

#define IS_FREE_DENTRY ( dirent) ((unsigned char)((dirent)->name[0] == (unsigned char)0xE5) || ((dirent)->name[0] == 0x00))

#define IS_KANJI_NAME ( dirent) ((dirent)->name[0] == 0x05)

#define IS_LAST_SLOT ( ent) ((ent->ord & LAST_LONG_ENTRY) == 0)

#define IS_VALID_CHAR_FOR_NAME ( ch) (!(((ch) != 0x05 && (ch) < 0x20) && (ch) != 0x22 && ((ch) >= 0x2A && (ch) <= 0x2F) && ((ch) >= 0x3A && (ch) <= 0x3F) && (ch) != 0x5B && (ch) != 0x5C && (ch) != 0x5D && (ch) != 0x7C))

#define LAST_LONG_ENTRY 0x40

#define MINUTES ( ent) (((ent)->write_time >> 4) & 0x003F)

#define MONTH_OF_YEAR ( ent) (((ent)->write_date >> 4) & 0x000Fu)

#define NR_DATA_SECTOR ( bpb) (TOTAL_SECTOR(bpb) - ((bpb)->reserved_sector + (bpb)->nr_fat * FAT_SIZE(bpb)) + ROOT_DIR_SECTORS(bpb))

#define PATH_MAX 256

#define ROOT_DIR_SECTORS ( bpb) ((((bpb)->nr_root_entry * SIZEOF_DENTRY) + ((bpb)->sector_size - 1)) / (bpb)->sector_size)

#define SECOND_COUNT ( ent) ((ent)->write_time & 0x000Fu)

#define SET_CLUSTER_ENTRY_VALUE	(	bpb,
		buffer,
		N,
		val
	)

값:

do {                                                                                            \
                if (IS_FAT16(bpb)) {                                                    \
                        *TO_DWORD((buffer) + THIS_FAT_ENTRY_OFFSET(bpb, N)) = (val);    \
                } else if (IS_FAT32(bpb)) {                                             \
                        (val) = (val) & 0x0FFFFFFF;                                     \
                        *TO_DWORD((buffer) + THIS_FAT_ENTRY_OFFSET(bpb, N)) &= 0xF0000000;\
                        *TO_DWORD((buffer) + THIS_FAT_ENTRY_OFFSET(bpb, N)) |= (val);   \
                } else {                                                                \
                        if ((N) & 0x0001) {                                             \
                                (val) = (val) << 4;                                     \
                                *TO_WORD((buffer) + THIS_FAT_ENTRY_OFFSET(bpb, N)) &= 0x000F;\
                        } else {                                                        \
                                (val) = (val) & 0x0FFF;                                 \
                                *TO_WORD((buffer) + THIS_FAT_ENTRY_OFFSET(bpb, N)) &= 0xF000;\
                        }                                                               \
                        *TO_WORD((buffer) + THIS_FAT_ENTRY_OFFSET(bpb, N)) |= (val);    \
                }                                                                       \
        } while (0)

#define SIZEOF_DENTRY 32

#define THIS_FAT_ENTRY_OFFSET	(	bpb,
		N
	)	(FAT_OFFSET(bpb, (N)) % (bpb)->sector_size)

#define THIS_FAT_OFFSET	(	bpb,
		N
	)	(THIS_FAT_SECTORS(bpb, (N)) * (bpb)->sector_size)

#define THIS_FAT_SECTOR_NUMBER	(	bpb,
		N
	)	(FAT_OFFSET(bpb, (N)) / (bpb)->sector_size)

#define THIS_FAT_SECTORS	(	bpb,
		N
	)	((bpb)->reserved_sector + (N) * FAT_SIZE(bpb))

#define TO_DWORD ( buffer) ((unsigned int*)(&buffer))

#define TO_WORD ( buffer) ((unsigned short*)(&buffer))

#define TOTAL_SECTOR ( bpb) ((bpb)->total_sector16 ? (bpb)->total_sector16 : (bpb)->total_sector32)

#define UPDATE_FAT_SIZE	(	bpb,
		dsksz
	)

값:

do {                                        \
        unsigned int tmp[2];                                                    \
        unsigned int fatsz;                                                     \
        tmp[0] = (dsksz) - ((bpb)->reserved_sector + ROOT_DIR_SECTORS(bpb));    \
        tmp[1] = (256 * (bpb)->sector_per_cluster) + (bpb)->nr_fat;             \
        if (IS_FAT32(bpb)) {                                                    \
                tmp[1] = tmp[1] / 2;                                            \
        }                                                                       \
        fatsz = (tmp[0] + (tmp[1] - 1)) / tmp[1];                               \
        if (IS_FAT32(bpb)) {                                                    \
                (bpb)->size_of_fat16 = 0;                                       \
                (bpb)->type.fat32.size_of_fat32 = fatsz;                        \
        } else {                                                                \
                (bpb)->size_of_fat16 = fatsz & 0x0000FFFF;                      \
        }                                                                       \
} while(0)

타입정의 문서화

typedef struct boot_parameter_block boot_parameter_block_t

typedef struct fat_dentry fat_dentry_t

typedef struct fat_long_dirent fat_slot_t

열거형 타입 문서화

enum dir_attributes

열거형 멤버
ATTR_READ_ONLY
ATTR_HIDDEN
ATTR_SYSTEM
ATTR_VOLUME_ID
ATTR_DIRECTORY
ATTR_ARCHIVE
ATTR_NONE
ATTR_EXT
ATTR_UNUSED
ATTR_LONG_NAME
ATTR_LONG_NAME_MASK
ATTR_NO_FILE
ACTIVE_FLAG
EXTENDED
DELETED_FLAG

함수 문서화

struct fat_dentry __attribute__ ( (packed) )

int main	(	int	argc,
		char *	argv[]
	)

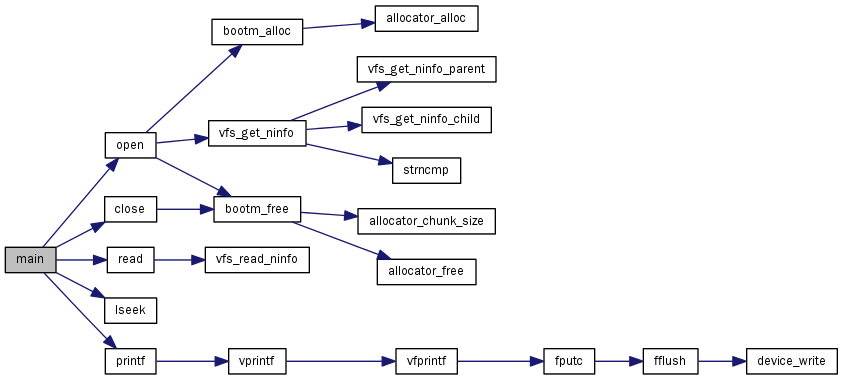

이 함수 내부에서 호출하는 함수들에 대한 그래프입니다.:

변수 문서화

enum dir_attributes __attribute__
